DIY Orphean

Sensitivity of 114dB/1Watt/1m, a wide frequency response: 270 Hz - 22 kHz and a very friendly impedance behavior making the Orphean a perfect match for any type of amplifier and any sized listening room.

Accurate, clean, detailed, transparent and dynamic - just a few words describing the sound of the Orphean M3 system in bringing the music close to you, as close as possible...

The extraordinarily high sensitivity of 114dB (!) makes it possible to use a wide variety of top quality amplifiers to drive the Orphean M3 from 200 mWatts of output power and upward.

The Orphean horns using co-axial compression drive units are the only commercially available horns crossing as low as 270 Hz. This way their presentation acts as a point source and with optimal integrated bass you do not hear loudspeakers, only music showing every detail with stable imaging. The integrated tweeter starts to blend in perfectly at 7 kHz so that the most important midrange (270 Hz - 7 kHz) is free of any phase problems that usually disturbs accurate reproduction of your music.

For overall quality in sound it is needed to use an additional high quality active bass system (not a subwoofer!)

!

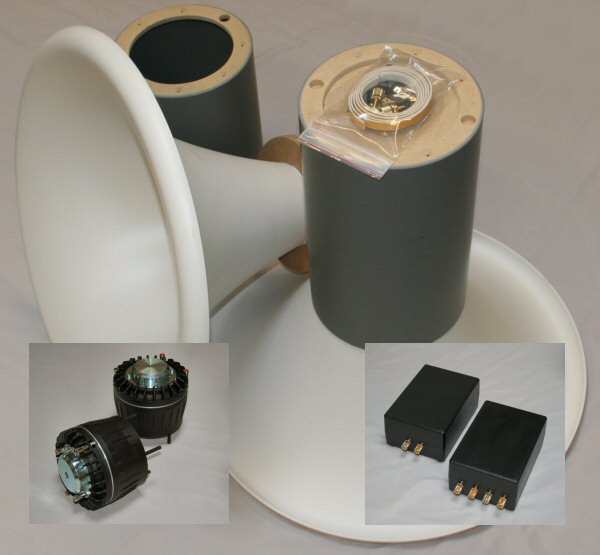

DIY Orphean M3 Complete (the pair)

Orphean M3 Complete

Includes one pair of M3 crossovers, one pair of modified BMS 4592ND/8 compression drivers and one pair of Orphean horns as complete DIY-kit (as standard without finish).

The horns as DIY-kit are unpainted. They can be ordered primed, standard paint finish (all "flat" colors are possible) or primed with luxury paint (metallic in any color). Colored paint options include an additional thick transparent layer with a polished surface.

Note: Assembled and painted horns are more costly to ship due to the larger package needed ship them safely.

The price listed is for one pair excluding sales tax (i.e. VAT, Mwst., BTW) and shipping.

DIY Orphean Horns (the pair)

Orphean Horns

All introducing information above is related to the Orphean MkII as complete system itself which is using the same horns as shown here as DIY-kit which you can purchase without the other parts if you have your own thoughts using the horns for different 2" drivers or when you already own a pair of BMS 4592ND compression drivers.

The Orphean horns are 55cm in diameter at their mouth and 50cm long (61cm with driver included).

The horns as DIY-kit are unpainted. They can be ordered primed, standard paint finish (all "flat" colors are possible) or primed with luxury paint (metallic in any color). Colored paint options include an additional thick transparent layer with a polished surface.

Note: Assembled and painted horns are more costly to ship due to the larger package needed ship them safely.

The price listed is for one pair excluding sales tax (i.e. VAT, Mwst., BTW) and shipping.

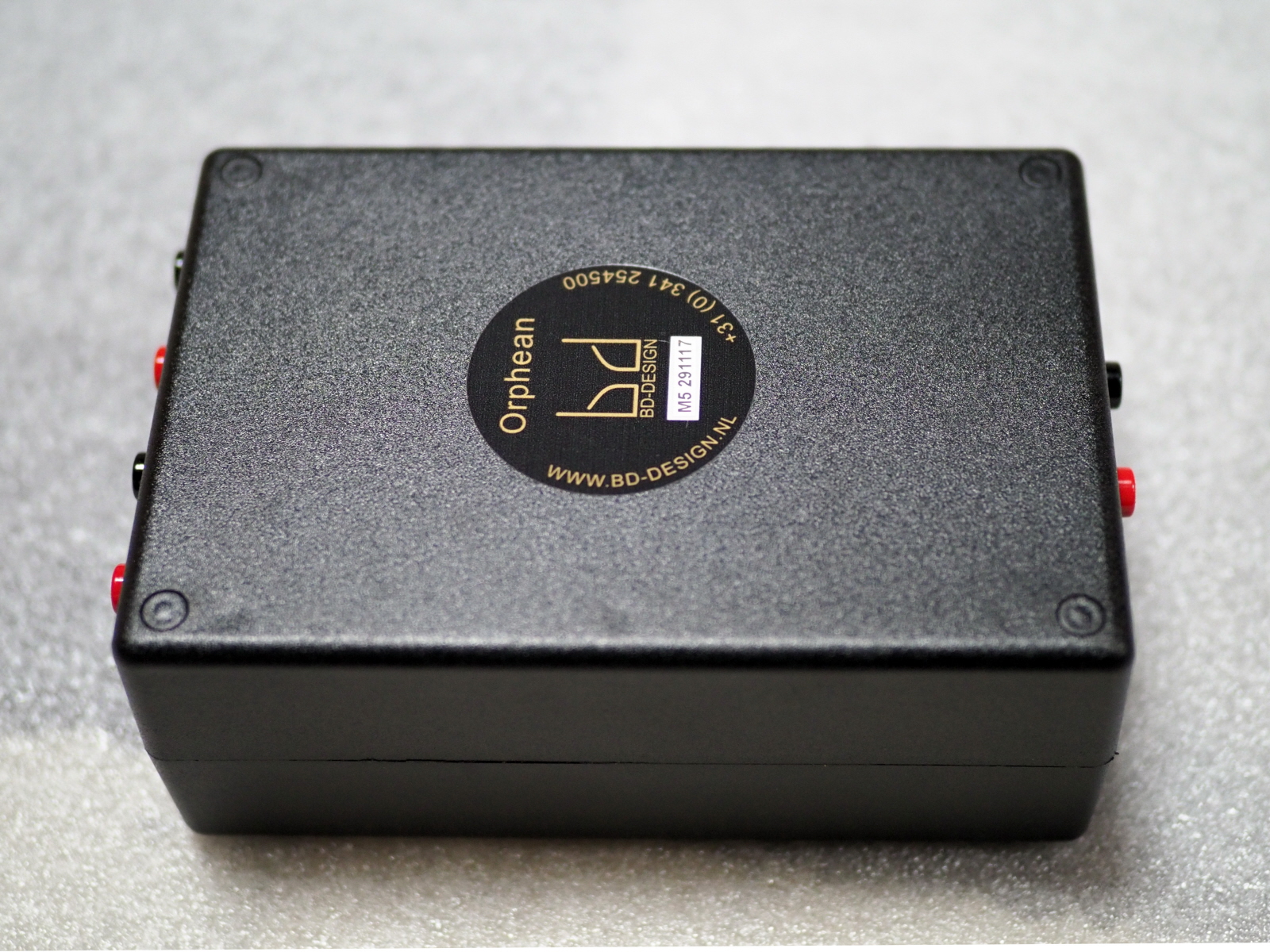

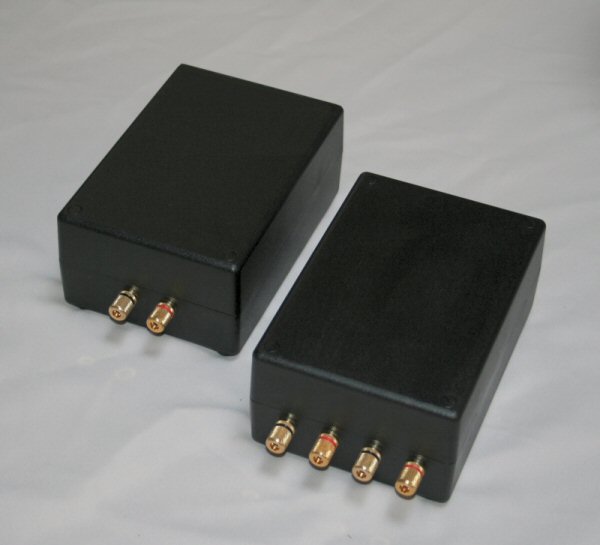

Orphean M3 Xover (the pair)

Orphean M3 Xover

In case you own a pair of BMS 4592ND/8 compression drivers then you may add our external filter for this combination to your shopping basket. This filter is designed for 8 ohm drivers though, if you have a 16 ohm driver then you can't use this filter unless you replace the diaphragms for 8 ohm versions.

The Orphean M3 Xover can not be used for other horns as these were designed specifically for use in combination with the Orphean horns and BMS 4292ND/8 compression drivers.

The price listed is for one pair excluding sales tax (i.e. VAT, Mwst., BTW) and shipping.

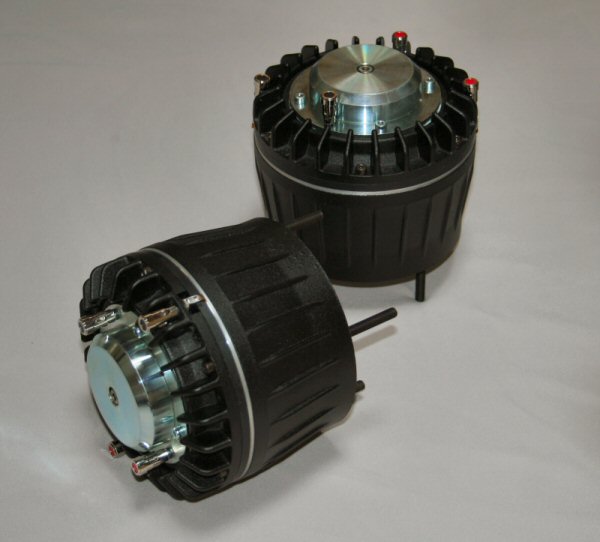

BMS 4592ND/8 (the pair)

BMS 4592ND/8 Click to open PDF-file

Modified, matched as pair and prepared for use in our Orphean system curing some inherent problems from the stock BMS drive units resulting in cleaner and less resonant output.

These drive units can also be used within other applications and other horns than the Orphean suitable to adapt 2" co-axial compression drivers.

The Orphean M3 Xover can then not be used as these are designed specifically for use in combination with the Orphean.

The price listed is for one pair excluding sales tax (i.e. VAT, Mwst., BTW) and shipping.

BMS 4592ND/8 Replacement parts (the pair)

BMS 4592ND/8 replacement parts

These replacement parts can be used to convert your 16 ohm 4592ND/16 compression drivers to 4592ND/8 for use with our Orphean M3 Xover or to repair if for some reason your drivers are broken.

All replacement parts are 8 ohms and standard sold as pair, if you need 16 ohm or a replacement for another BMS driver then please contact for the available options.

Of course we can do the conversion or repair for you (at extra costs) but then we will need you to deliver your driver(s) to us.

The price listed is for one pair excluding sales tax (i.e. VAT, Mwst., BTW) and shipping.

Hypex PSC2.400 (one pair)

Hypex PSC2.400 plate amps having a neat built-in DSP Xover, a very good match with any active Oris based system. Fitting Neutrik Powercon NAC3FCA mains plugs are included.

 Click to open PDF-fileClick to open PDF-file for more detailed information.

The price listed is for one pair excluding sales tax (i.e. VAT, Mwst., BTW) and shipping.
