DIY Orphean M3 Ultra
Sensitivity of 114dB/1Watt/1m, a wide frequency response: 30Hz-22kHz and a very friendly impedance behaviour making the Orphean M3 Reference Ultra a perfect match for any type of amplifier and any sized listening room.

This pages is showing the additional options and needed parts to complete your Orphean M3 system with high a quality bass system based on our own Reference enclosure design. The system is semi-active and needs its own amplifier for the bass (not included).

For a complete package you'll need to order all parts listed on this page.

!
Click to enlarge...

DIY Orphean M3 Complete (the pair)

Orphean M3 Complete

Includes one pair of M3 crosovers, one pair of modified BMS 4592ND/8 compression drivers and one pair of Orphean horns as complete DIY-kit (as standard without finish).

The standard crossover (hard-wired) is built-up with high quality parts such as Duelund carbon/silver resistors, pure silver wiring with cotton in oil isolation and paper in oil capacitors for the tweeter.

On request we can supply our crossovers with Duelund Coherent Audio VSF or PIO (paper in oil capacitors) with copper or silver foil as conductor.

Select from the options (at extra costs) your preference for changing standard crossover components with Duelund Coherent Audio capacitors.

The horns in the DIY kits are unpainted. They can be ordered primed, primed with a standard paint finish (all "flat" colours are possible) or primed with luxury paint (metallic or pearl shades in any colour). Coloured paint options include a thick transparent layer with a polished surface.

Note: Assembled and painted horns are more costly to ship due to the larger package needed ship them safely.

The price listed is for one pair excluding sales tax (i.e. VAT, Mwst., BTW) and shipping.

Enlarge...

BD15 bass driver 15" (one pair)

BD15 bass driver 15" (one pair)

This 15" bass driver, which is exclusive to BD-Design, features a compact, powerful neodymium magnet system which provides exceptional energy levels and reduces the total loudspeaker mass. This results in super high efficiency, low distortion, excellent linearity, and extended bandwidth.

The price listed is for one pair excluding sales tax (i.e. VAT, Mwst., BTW) and shipping.

 Fs  35.696  BL  29.207  eta  5.2111
 Qms  8.7300  VAS  287.79  L 1kHz  1.3839
 Qes  0.2412  Re  13.000  L 10kHz   0.7576
 Qts  0.2347  Rms  1.8127  Z F1-F2  79.290
 Cms  0.2817  dBSPL  99.369  ZMax  483.61
 Mmd  56.400  SD  0.0855  X-Lin (p/p)  7,0000
 Mms  70.557  P (RMS)  150.00  Weigth  4,9000

BD15' frequency response measured with the driver mounted in a 1200 x 1200mm open panel and standing on the floor.

Note: Frequency response measured with the driver mounted in a 1200 x 1200mm open panel standing on the floor.

Click to enlarge...

Damping material

Damping material for one pair of Reference Compact or Ultra bass enclosures

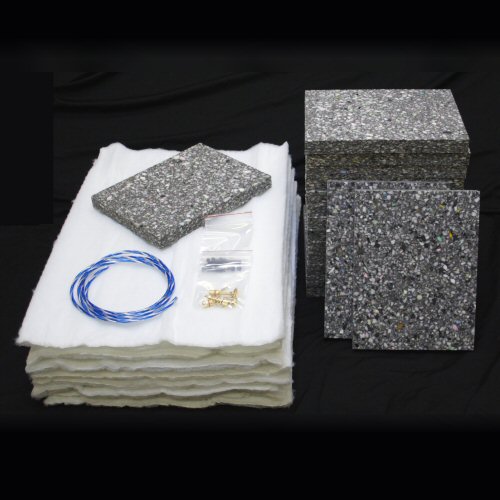

When you are building our Reference Bass enclosure to complete your Oris system you'll need this specific damping material. The kit includes the pre-cut Tyrofoam sheets, BAF wadding and decent screws to mount the drive units.

Glue for the Tyrofoam is not included. For this you can use any kind of material as long as the whole surface of the sheets is covered. We normally use Bison Waterkit (a Dutch brand) but any other water based carpet glue will work just as well.

The price listed is excluding sales tax (i.e. VAT, Mwst., BTW) and shipping.

Click to enlarge...

Crossover parts Orphean MkII Ultra

Crossover parts, for use with the Orphean MkII Reference Ultra system.

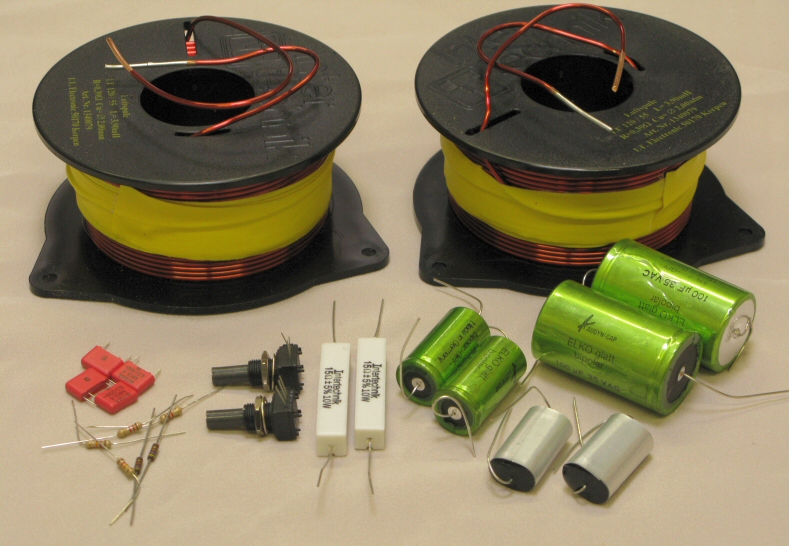

All needed parts to filter the bass section of your Orphean MkII Reference Ultra system optimally. The crossover is designed with a double function, one part in front of your bass amplier (line level) and the other part in between the bass amplifier and the BD15 bass drivers. Schematics are included.

The price listed is for stereo excluding sales tax (i.e. VAT, Mwst., BTW) and shipping.
